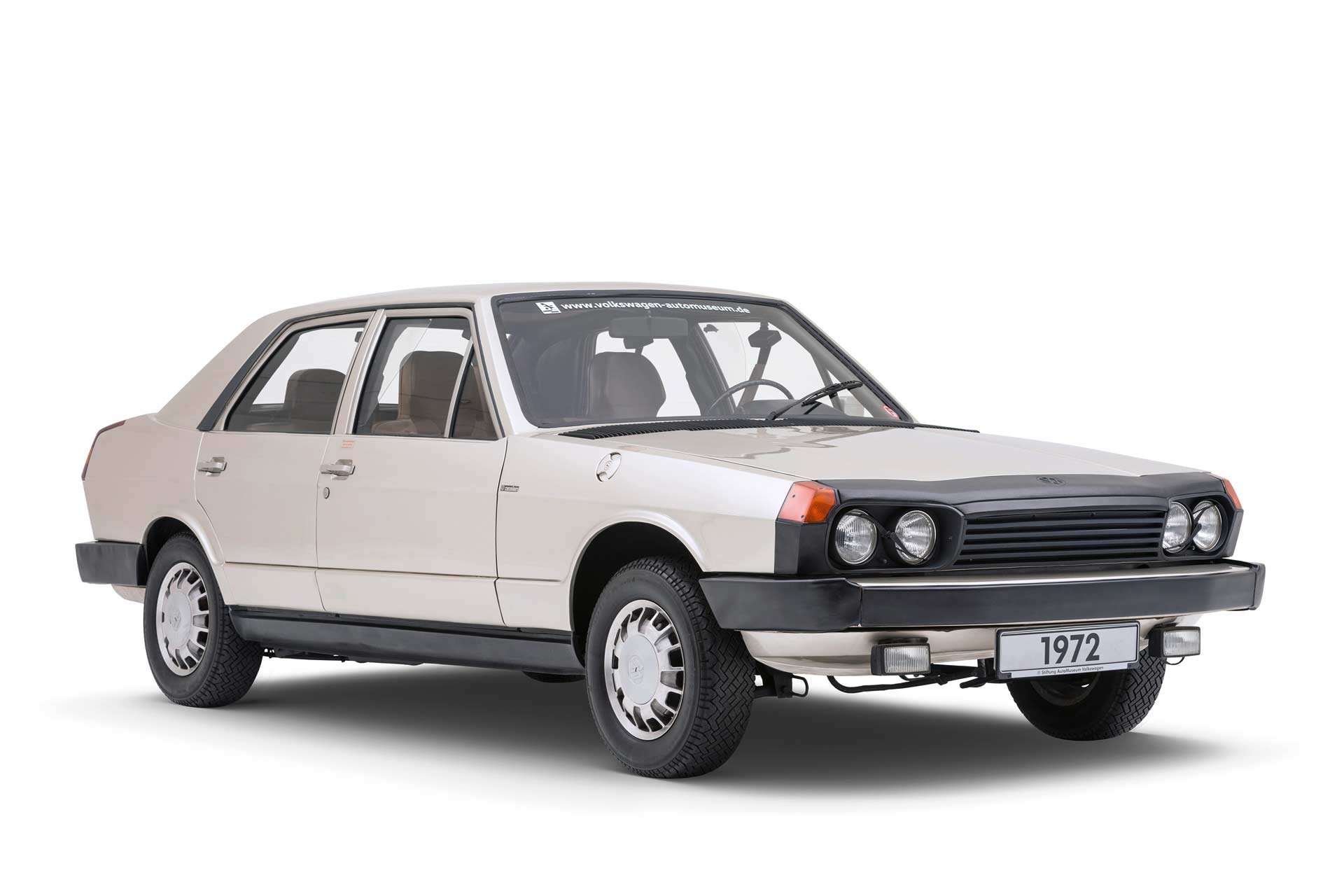

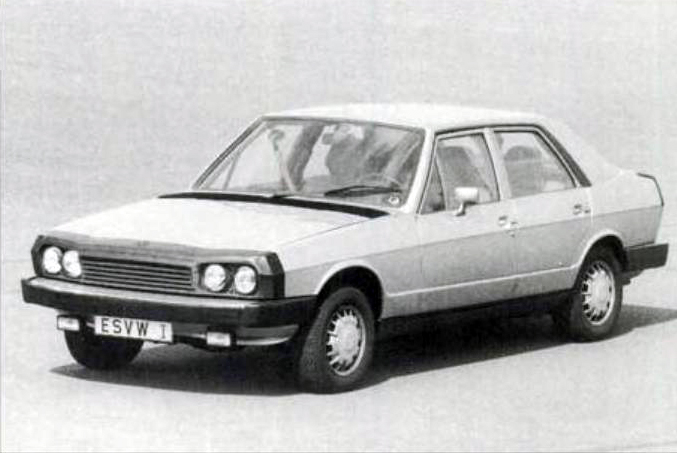

In 1971, Volkswagen unveiled a groundbreaking concept vehicle built not for the showroom, but for the future of automotive safety: the ESVW I. Developed in response to a U.S. Department of Transportation (DOT) initiative, the ESVW I was Volkswagen’s contribution to the Experimental Safety Vehicle (ESV) program — a global effort to rethink vehicle safety amid rising traffic fatalities.
At the time, approximately 60,000 people were dying in car crashes annually in the United States. The DOT's ESV program invited automakers to develop experimental vehicles that prioritized occupant protection over design or performance. These vehicles were not meant for production, but to test radical new ideas in safety.
Volkswagen, already working on crash testing and advanced frame design since 1955, joined the program in 1970. The result was the ESVW I, a fully engineered prototype with several pioneering features.
Advanced Safety Architecture
The ESVW I’s construction centered around a three-part frame designed to absorb and distribute crash energy away from the passenger cell. This structural approach formed the foundation of Volkswagen’s future passive safety development.
Inside the vehicle, safety was paramount. The ESVW I introduced a passive safety-belt system that required no action from the driver or passengers to engage. Upon opening the door and sitting in the front seat, a horizontal strap automatically extended across the occupant’s torso. The system included belts for the knees and midsection, and all straps tightened automatically in a crash — decades before such systems became widespread.
Safety Beyond the Seatbelt
The ESVW I also tested anti-lock braking systems (ABS) and side-impact protection — technologies that would become industry standards years later. Even the windshield wipers were reimagined for maximum visibility, with an additional set of mini-wipers dedicated to keeping the headlights clear.
Unconventional design choices reflected the prototype’s safety focus. The seats didn’t move forward or backward — only up and down — while the cockpit and pedals were adjustable to ensure proper fit for different drivers. A rear-mounted, 100-horsepower flat-four engine powered the vehicle, with storage space available in both the front trunk and above the engine in the back.
Testing and Legacy

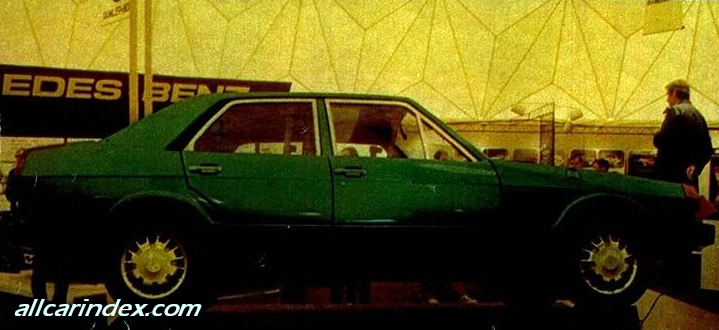

Volkswagen debuted the ESVW I at a global automotive safety conference in 1972. The company presented detailed test data from 14 crash tests of the prototype’s passenger cell, 40 crash tests using production cars with ESVW I safety features, and numerous handling evaluations.
The ESVW I met all DOT safety requirements, but more importantly, it influenced future production vehicles. Features such as passive safety belts found their way into models like the Volkswagen Rabbit. The philosophy behind the ESVW I — that safety should be engineered into the very structure and systems of a car — remains a guiding principle in Volkswagen’s vehicle development.
Today, the ESVW I stands as a milestone in automotive safety history, marking an era where innovation in protection began to catch up with innovation in performance.
