ItalDesign - Giugiaro - Clipper Concept

2014

ITALDESIGN GIUGIARO PRESENTS CLIPPER: THE SPORTY CROSS MPV

VERSATILE AND ECO-FRIENDLY, QUIET AND STREAMLINED

LIKE THE SAILING SHIPS IT'S NAMED AFTER

Geneva, March 2014

In a world preview, Italdesign Giugiaro presents its brand new concept car, Clipper: a sporty, versatile MPV which is also eco-friendly, thanks to the all-electric drive and power source.

Clipper is the result of a study in style and engineering focusing on tomorrow's world and cities: this sporty MPV has a technological spirit and a green heart. Thanks to the versatile MQB modular platform developed by Volkswagen Group, it can accommodate up to 6 people, seated in three rows of two seats; it features an electric powertrain comprising two 110 kW engines, housed one up front and one at the back, guaranteeing a range of 540 km. It has four-wheel drive with fully independent wheels. The battery packs are housed in the floor, specially designed to afford maximum protection against accidental impact from the road while driving.

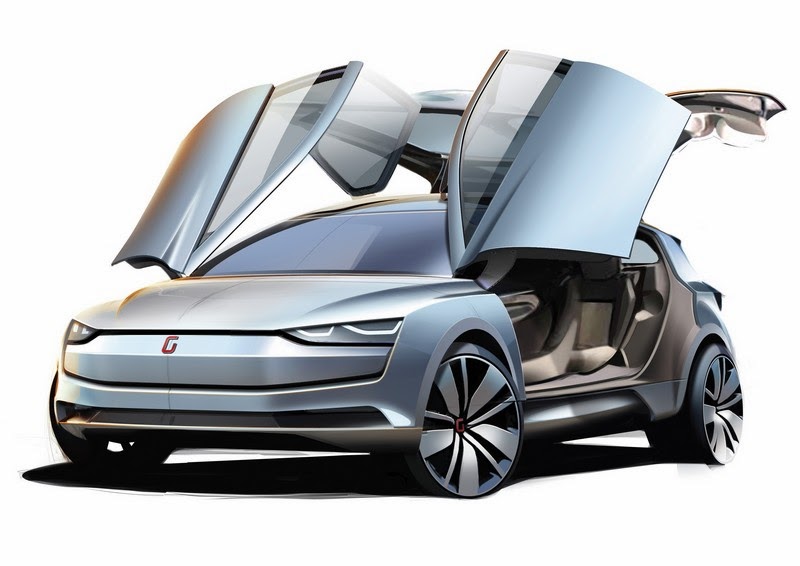

"This year", states Giorgetto Giugiaro "we wanted to focus our styling and engineering research on a project for a deliberately not futuristic car. The only concession to exotic styling lies in the door opening mechanisms, with “butterfly” doors at the front and “gull-wing” at the back.

We concentrated instead on devising an architectural solution to satisfy the need for a spacious, comfortable interior, also exploiting the advantages of the technology at our disposal today. An example of this is the flat floor, typical of electric vehicles, and the mobile modules of the interior which can be modified, with the controls and dashboards developed in line with the “touch feeling” concept so that the compartment adapts to the needs of driver and passengers. As always, the name of the vehicle hints at its personality traits: "clipper" ships enjoyed their heyday in the latter half of the 19th century; quiet and streamlined, they transported precious cargo like spices".

Clipper was designed, engineered and built at the Italdesign Giugiaro plant in Moncalieri (Turin).

DESIGN OF THE INTERIORS

The design for the passenger compartment's outfit of Clipper represents the true revolutionary element of this concept car. Effective use of space, combined with original and highly innovative architectural solutions, not to mention the use of brand new technology that emphasises user-friendly, intuitive design, makes Giugiaro Clipper a veritable automotive research & design lab.

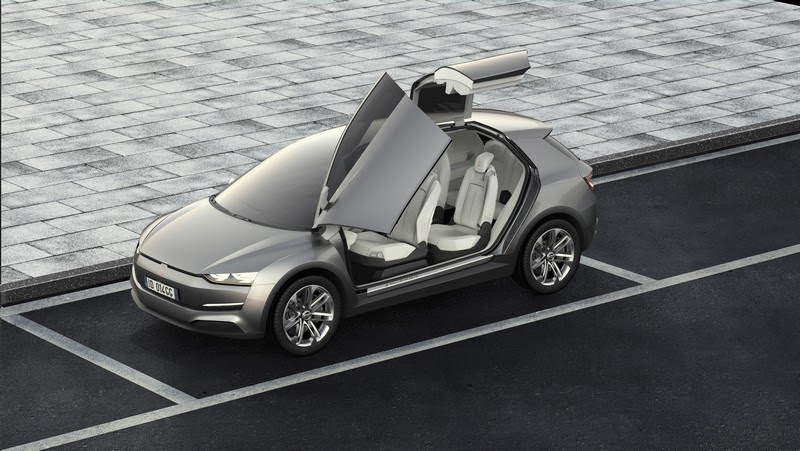

The six occupants can all get into the car at the same time thanks to the simultaneous opening of the doors and the absence of the B-pillar: with this architectural solution, Clipper offers one single, wide opening for access to the interior.

The interior design team at Italdesign Giugiaro designed the instrument panel with one watchword only in mind: lightness.

The central instrument cluster, based on the latest digital interfaces, does not rest on the dashboard as is usually the case, but is floating and attached to the upper part of the instrument panel. Driver information is displayed on two screens, one positioned in the classic spot, recessed in the dashboard; the other, meanwhile, is housed in the upper part of the instrument cluster and projects the information onto the perspex cover of the first monitor, titled at an angle of approx. 45°. The information from the two screens is complementary and the overall effect created for the driver is similar to a 3-D holographic projection.

Three screens are integrated in the section of instrument panel in front of the passenger: the first, farthest left, shows the images from the camera which replaces the rear-view mirror; the other two, meanwhile, provide the usual information relating to navigation and infotainment.

For passenger compartment climate control, a sleek aperture runs the entire width of the instrument panel.

The typical electric vehicle architecture with flat floor allowed the designers to exploit the space between the seats and create an innovative mobile tunnel with 11” touchscreen.

The almost complete absence of conventional buttons, replaced by graphic touchscreen interfaces, has made it possible to exploit the latest available technology, for lighter surfaces and simpler controls. The touchscreen on the central tunnel groups together all the climate control and infotainment controls. The only buttons present are the start/stop button for the powertrain, that for gear selection and the electronic handbrake, integrated in the armrest. To the side of the armrests are the door opening buttons.

The tunnel can be fully adjusted electronically by means of two buttons located on the front seats: the touchscreen folds down for discreet storage under the cushion; the tunnel structure has a stroke of 50 cm and can be slid fully back to facilitate movement between the driver's seat and the passenger seat, a useful option in the event of an obstruction preventing exit from one of the doors.

Four iPad Minis are integrated in the headrests for passengers seated in rows two and three. The seats of the two back rows can be folded flat to create one large load platform offering a total volume of around 900 litres.

The steering wheel is multifunctional and, here too, the buttons have been replaced by two mini touch pads that replicate the main control functions and allow the direction indicators to be activated.

The external lights and windscreen wipers activate automatically.

The collaboration with Alcantara

For the upholstery of the interiors, the Color & Trim department of Italdesign Giugiaro developed a new project, in partnership with Alcantara, which enhances the welcoming yet hi-tech feel of the interior, emphasizing the innovative, light architecture.

The result is a geometric diamond pattern in Castel Rock grey, digitally printed on a white Alcantara ground, which gradually opens into a looser mesh design, creating an interesting optical effect that graduates from dark to light. The digital print is applied to the Alcantara ground without detracting in any way from the aesthetic, tactile and functional characteristics of the material, which remains smart and stylish, soft and pleasant to the touch, yet light and incredibly hard-wearing. This exclusive version of Alcantara is used for several prominent areas of the interior: it can be seen on the instrument panel, steering wheel, central tunnel, oddments compartment and the back shell of the seats.

Carlink

The very essence of this hi-tech, electric vehicle designed to accommodate up to six occupants means that Clipper is perfectly in step with the times. Thinking of a world that is constantly connected and always interacting, Italdesign Giugiaro developed an app that allows car occupants to stay connected with each other and the outside world: Carlink.

Occupants can activate the app on the tablets and access a private network that allows them to share documents and diaries, chat or play in multiplayer mode with the other occupants in the car.

DESIGN OF THE EXTERIOR

The car's entirely electric set-up and the use of the MQB platform with its flat floor dictated the overall look of Clipper also in terms of the design of the exterior.

Clipper has a deliberately functional setting which is designed to make the best possible use of interior space, so the driver and passengers are guaranteed the highest level of comfort.

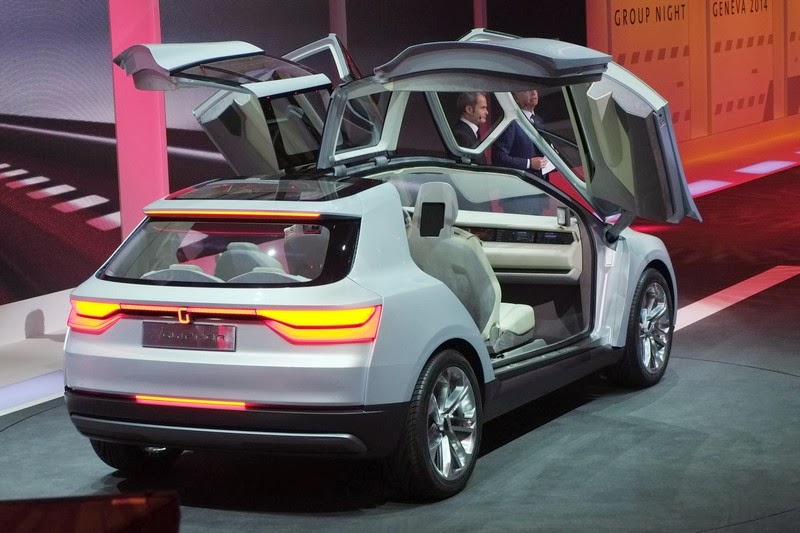

"We rationalized like never before, while designing Clipper" explained Giorgetto Giugiaro, "and we built the car as if it were, in theory, close to the production level, apart from a few necessary modifications. The only "exotic" license we allowed ourselves was to eliminate the conventional B-pillar and design the car with “butterfly” doors at the front and “gull-wing” doors at the back".

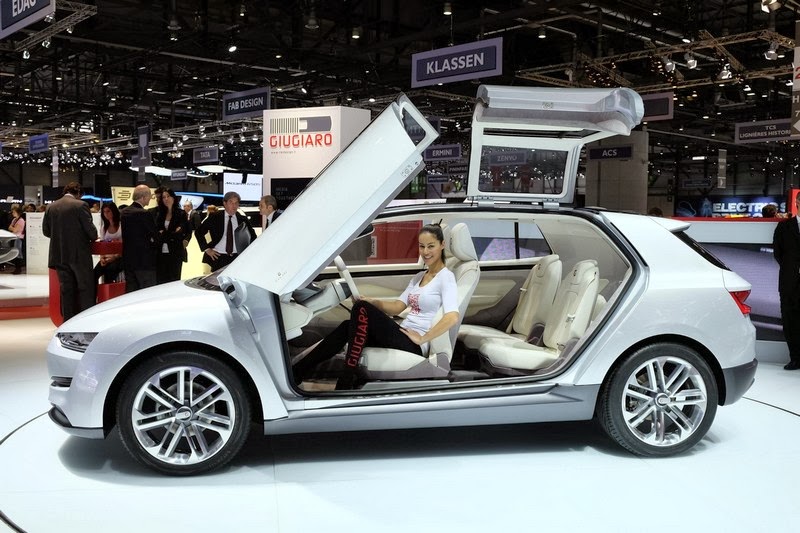

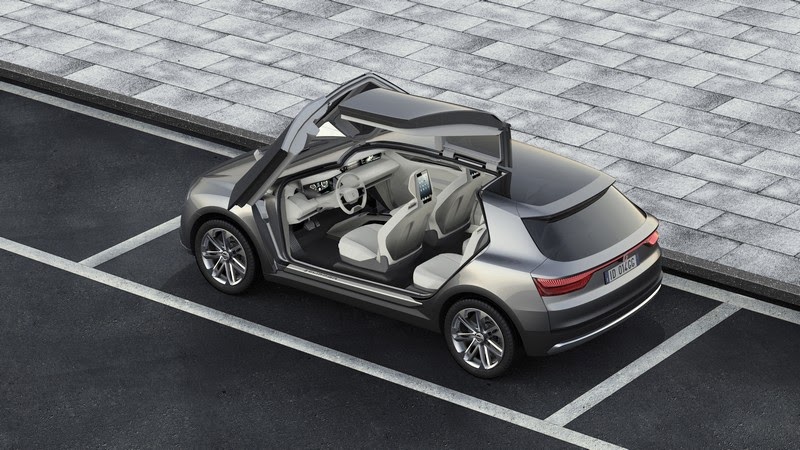

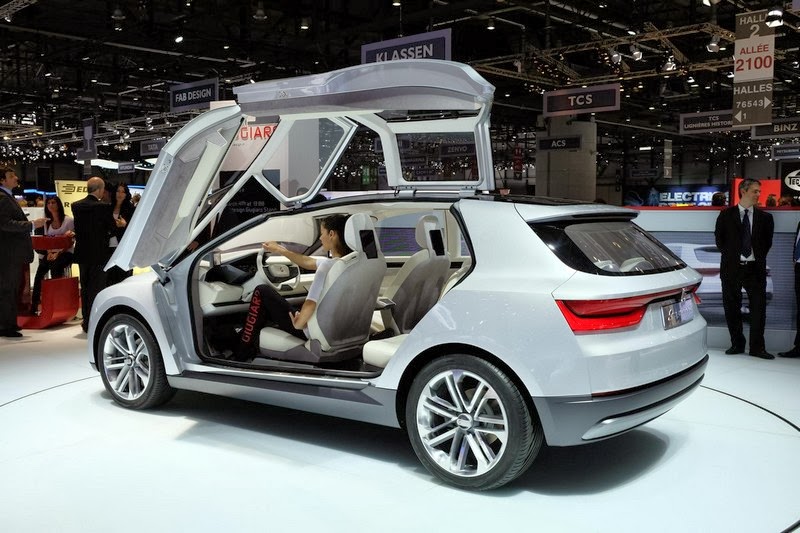

The B-pillar is actually integrated in the structure of the back doors, concealed below the windows: this solution guarantees a single, large opening for access to all three rows of seats in the passenger compartment, further facilitated by the automatic and simultaneous opening of front and back doors on the same side.

When exiting the vehicle from the rear seats, the electronic system guarantees safety at all times by releasing and lifting the front door first, followed by the back door.

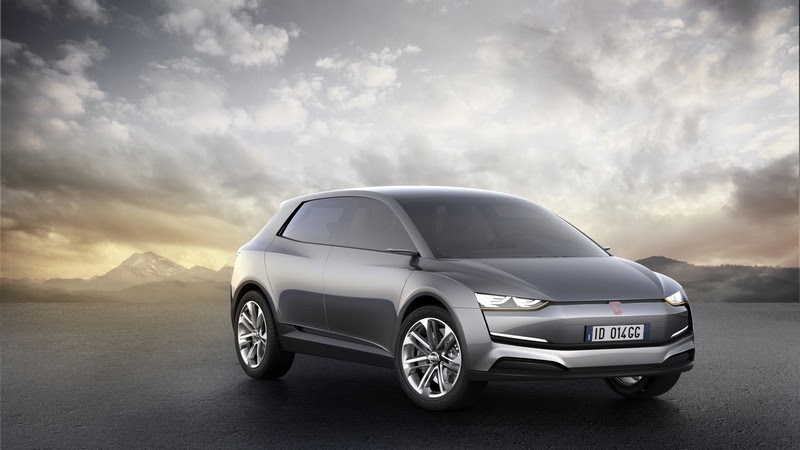

The electric engine dictated the design of the front: with no need to incorporate a front grille for radiator cooling as required in cars with endothermic engines, two air intakes were positioned vertically between the light clusters and the wheel arches; another two were included horizontally just under the headlights to channel the airflow under the floor where the battery packs are housed, for the purpose of cooling. Two similar vents are positioned at the back of the car for extraction of the air flow.

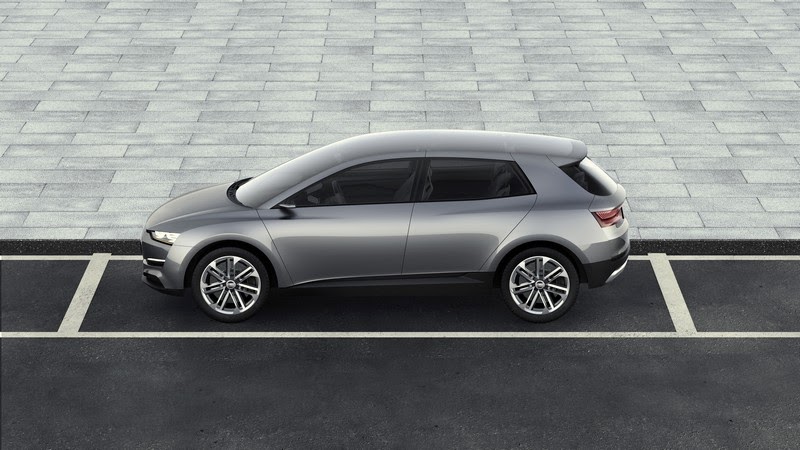

The curve of the waistline traces a sleek line from the front bonnet along the side of the car all the way to the C-pillar, giving Clipper a dynamic, sporty look, further emphasized by the design of the wheel arches, which merge progressively into the side.

The panoramic windscreen sweeps all the way back to the rear spoiler, ensuring even passengers in the back row of seats enjoy superb visibility.

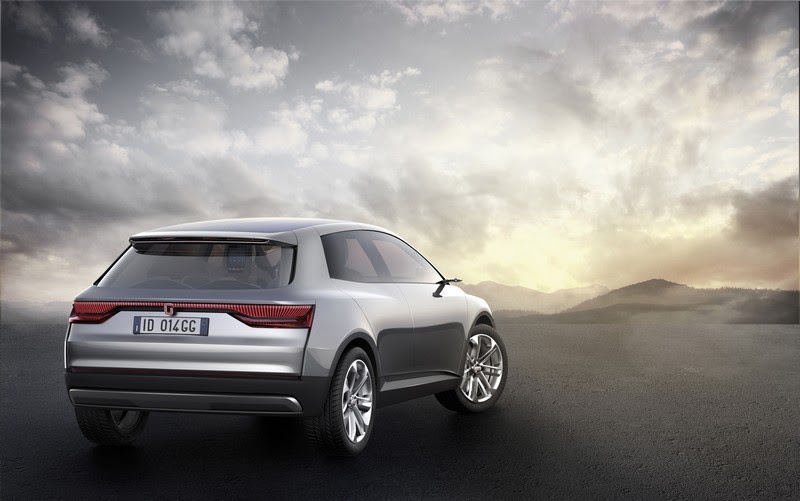

The generously sized rear tailgate sports integrated light clusters whose main functions are duplicated, when the tailgate is open, by additional lights built into the rear bumper, ensuring the vehicle is perfectly visible and the passengers safe at all times.

Below the C-pillar are two concealed vents that ensure a constant supply of fresh air inside the passenger compartment.

CLIPPER DUCATI VERSION

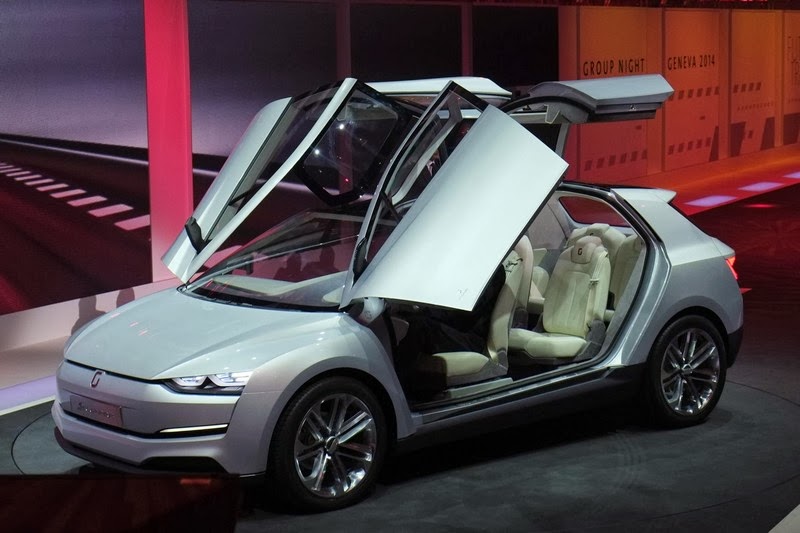

The versatility of the Clipper project is illustrated by the Ducati version, a great attraction at the Italdesign Giugiaro booth at the Geneva Motor Show.

In this “vanette” version, Clipper features doors of a different design and a slightly different C-pillar compared to the original outfit.

This variant is dedicated to Ducati, one of the most prestigious Italian brands, famous around the world, which together with Audi, Lamborghini and Italdesign Giugiaro, makes up the Audi Group.

The livery thus sports the official Ducati colours and graphics in a tribute to the imminent world championship season.

The Italdesign Giugiaro style centre has also designed an original towing trailer for the Ducati Panigale 1199 S which complements the style and performance of all models to leave the Borgo Panigale plant: a good omen for a year of even better results.

THE COLLABORATION WITH LANIFICIO CERRUTI CONTINUES

For the presentation of the new Clipper prototype, Lanificio Cerruti has developed an exclusive fabric in the finest cashmere for Italdesign Giugiaro, featuring impermeability and breathability performance which is unique for this type of material.

These technological characteristics are achieved by applying a special film at the back of the fabric, which makes it impermeable yet preserves its breathability. Nor does this alter the natural softness of the cashmere, which is bathed in Teflon as a surface treatment.

Lanificio Cerruti and Italdesign Giugiaro have taken the particular characteristics of this fabric and used it to create a line of exclusive products for the Clipper.



Dimensions

Length

(mm)

4534



Height

(mm)

1551



Width

(mm)

1914



Wheelbase

(mm)

2790



Front track

(mm)

1641



Rear track

(mm)

1647



Front overhang

(mm)

875



Rear overhang

(mm)

869



Ground clearance

(mm)

189



Empty weight

(kg)

1800



Vredestein Tyres



Front

245/45 R 20



Rear

245/45 R 20



Performance

Max. speed

(km/h)

204



Range

540 km



Powertrain



Power supply

Electric

(2 engines)



Location

1 front

1 rear



Total power

kW

220



Gearbox

Direct drive



Drive

4WD

independent wheels



Suspension

Front

McPherson



Rear

Multilink

SOURCE: ITALDESIGN - GIUGIARO
